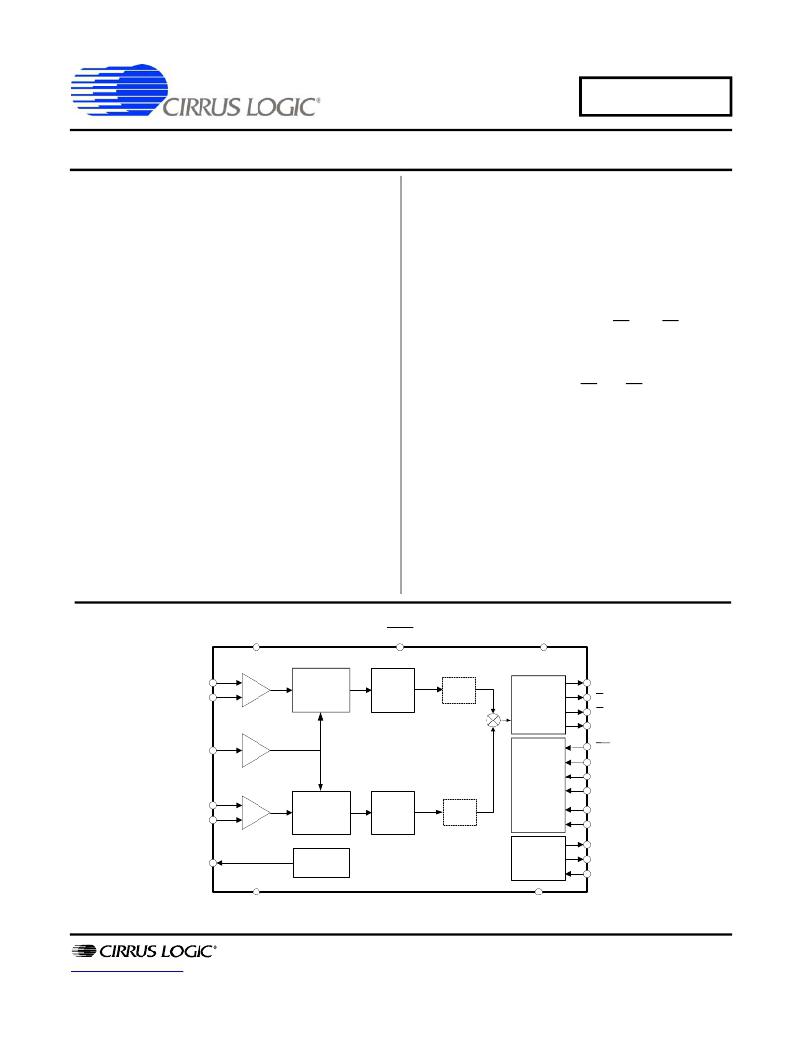

CS5466
Low-cost Power/Energy IC with Pulse Output
Features
? Single-chip Power Measurement Solution
? Energy Data Linearity:
±0.1% of Reading, over 1000:1 Dynamic Range
Description
The CS5466 is a low-cost power meter solution incorpo-
rating dual delta-sigma ( ???? analog-to-digital converters
? ADCs), an energy-to-frequency converter, and energy
pulse outputs on a single chip. The CS5466 is designed
? On-chip
functions: Measures Power and
to accurately measure and calculate energy for single
Performs Energy-to-pulse Conversions
? Meets Accuracy Spec for IEC, ANSI, & JIS.
? High-pass Filter Option
? Four Input Ranges for Current Channel
? On-chip, 2.5 V Reference
? Pulse Outputs for Stepper Motor or
Mechanical Counter
? On-chip Energy Direction Indicator
? Ground-referenced Input Signals with Single
Supply
? High-frequency Output for Calibration
? On-chip, Power-on Reset (POR)
? Power Supply Configurations:
VA+ = +5 V; AGND = 0 V; VD+ = +3.3 V to 5 V
phase, 2- or 3-wire power metering applications with
minimal external components.
The low-frequency pulse outputs, E1 and E2, provide
pulses at a frequency which is proprtional to the active
power and can be used to drive a stepper motor or a me-
chanical counter. Energy direction output, NEG,
indicates when pulse outputs E1 and E2 represent neg-
ative active power. The high-frequency pulse output
FOUT is designed to assist in system calibration.
The CS5466 has configuration pins which allow for direct
configuration of pulse output frequency, current channel
input range, and high-pass filter enable option.
The CS5466 also has a power-on reset function which
holds the part in reset until the supply reaches an oper-
able level.
ORDERING INFORMATION
See page 16 .
I
VA+
RESET
VD+
IIN+
IIN-
PGA
4th Order ??
Modulator
Digital
Filter
HPF
Option
Energy-to-
FOUT
E1
Frequency
Conversion
E2
NEG
VREFIN
x1
Config
HPF
FREQ0
FREQ1
FREQ2
VIN+
VIN-
x10
2nd Order ??
Modulator
Digital
Filter
HPF
Option
IGAIN0
IGAIN1
CPUCLK
VREFOUT
http://www.cirrus.com
AGND
2.5V On-Chip
Reference
Copyright ? Cirrus Logic, Inc. 2011
(All Rights Reserved)
Clock
Generator
DGND
XOUT
XIN
APR ‘11
DS659F2
